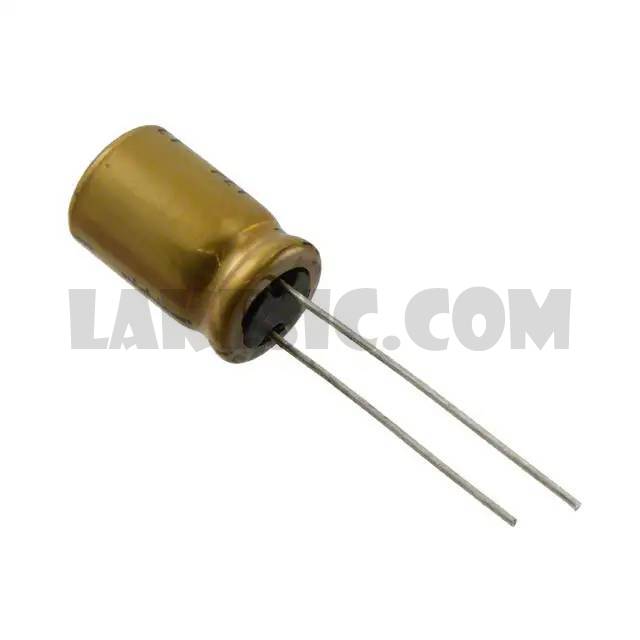

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFW Series
Standard Package	1
Manufacturer	Nichicon
Series	UFW
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	570mA @ 120Hz
Ripple Current @ High Frequency	855mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFW1H2R2MDD1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1A102MPD	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2A010MDD	Nichicon, 1µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW0J471MED1TD	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1H471MHD	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1A331MED	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1V102MHD	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2AR33MDD1TD	Nichicon, 0.33µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1E332MHD	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW0J331MED1TD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2AR47MDD	Nichicon, 0.47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW0J472MHD1TO	Nichicon, 4700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View

UFW1H331MPD1TD

Part NumberUFW1H331MPD1TD
