Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UHE Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UHE
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.944A @ 120Hz
Ripple Current @ High Frequency	3.68A @ 100kHz
Impedance	17 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.398" (35.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UHE1H561MHD6TN	Nichicon, 560µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1E101MED1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHE	View
UHE1V471MHD6TO	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1C681MPD	Nichicon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UHE	View
UHE2A121MHD6	Nichicon, 120µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UHE	View
UHE1E332MHD6TN	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1J391MHD	Nichicon, 390µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE2A271MHD6	Nichicon, 270µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE2A181MHD1TO	Nichicon, 180µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1C222MHD1TO	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1J271MHD6	Nichicon, 270µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View

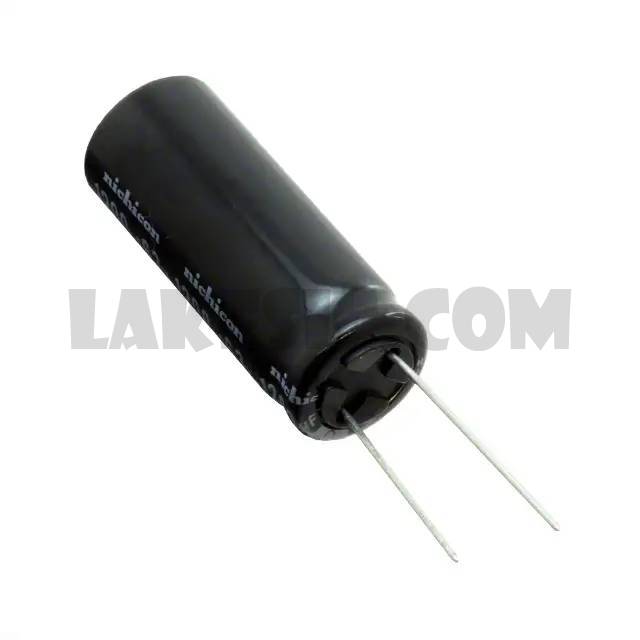

UHE1H222MHD6

Part NumberUHE1H222MHD6
