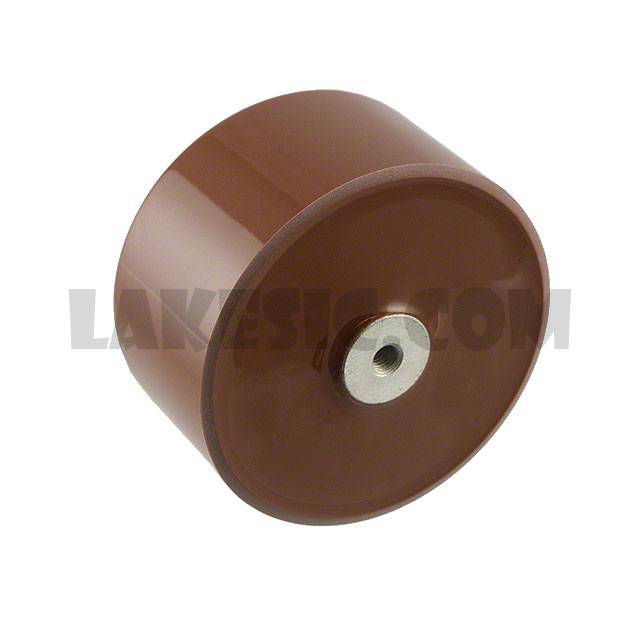

UHV-12A

Part NumberUHV-12A

ManufacturerTDK Corporation

DescriptionCAP CER 1700PF 50KV Z5T DISK

DatasheetUHV Series

Package / CaseDisk, Metal Fitting - Threaded

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1700pF ±10% 50000V (50kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded

To learn about the specification of UHV-12A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UHV-12A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UHV-12A.
We are offering UHV-12A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UHV-12A - Product Attributes

UHV-12A - Related Products

More >>

UHV0J221MDD

Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHV

View

UHV1V221MPD1TD

Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV1A681MPD

Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV-10A

TDK Corporation, 560pF ±10% 50000V (50kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV-251A

TDK Corporation, 100pF ±10% 50000V (50kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV-252A

TDK Corporation, 200pF ±10% 50000V (50kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV1V391MPD

Nichicon, 390µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV1C472MHD

Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV-222A

TDK Corporation, 400pF ±10% 20000V (20kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV1C122MPD

Nichicon, 1200µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV-9A

TDK Corporation, 2000pF ±10% 40000V (40kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV1C182MPD

Nichicon, 1800µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

Categories	Capacitors / Ceramic Capacitors
Datasheet	UHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	UHV
Packaging	Tray
Part Status	Active
Capacitance	1700pF
Tolerance	±10%
Voltage - Rated	50000V (50kV)
Temperature Coefficient	Z5T
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder
Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	2.362" Dia x 1.378" L (60.00mm x 35.00mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-
