Categories	Capacitors / Ceramic Capacitors
Datasheet	UHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	UHV
Packaging	Bulk
Part Status	Active
Capacitance	100pF
Tolerance	±10%
Voltage - Rated	50000V (50kV)
Temperature Coefficient	Z5T
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder

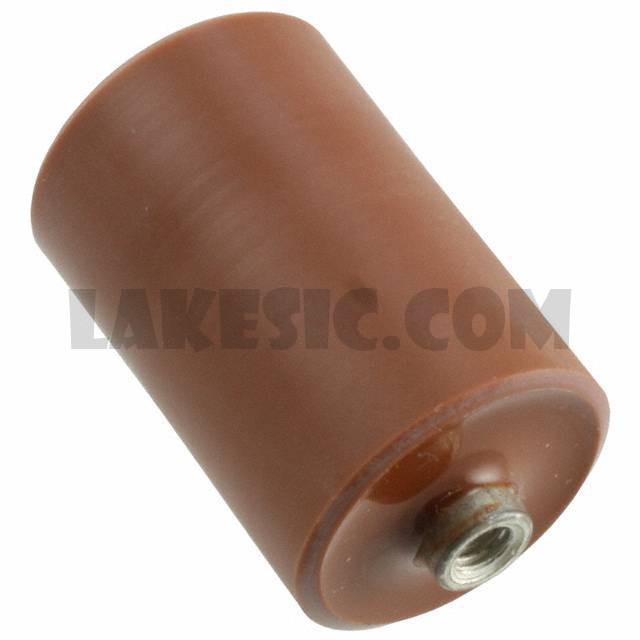

Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	0.787" Dia x 1.378" L (20.00mm x 35.00mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-

UHV1A681MPD	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1V391MPD	Nichicon, 390µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1E182MHD	Nichicon, 1800µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV-252A	TDK Corporation, 200pF ±10% 50000V (50kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV0J332MHD	Nichicon, 3300µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV-232A	TDK Corporation, 400pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV1E821MPD	Nichicon, 820µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1E332MHD	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1E101MED	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHV	View
UHV-10A	TDK Corporation, 560pF ±10% 50000V (50kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV1V102MHD1TO	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1V471MPD	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View

UHV-251A

Part NumberUHV-251A
