Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UHW Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UHW
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	572mA @ 120Hz
Ripple Current @ High Frequency	1.43A @ 100kHz
Impedance	115 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UHW2A471MHD6TN	Nichicon, 470µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A391MHD6TN	Nichicon, 390µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K561MHD6TN	Nichicon, 560µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1J122MHD6TN	Nichicon, 1200µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1V122MHD	Nichicon, 1200µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1A562MHD6	Nichicon, 5600µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K182MHD	Nichicon, 1800µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A391MHD6TN	Nichicon, 390µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A101MHD6TO	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K181MPD	Nichicon, 180µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1H222MHD	Nichicon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1A103MHD	Nichicon, 10000µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View

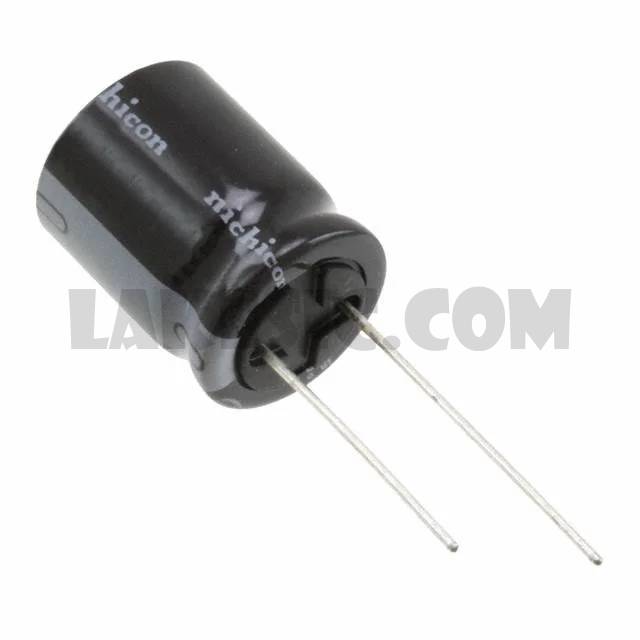

UHW2A101MHD6TO

Part NumberUHW2A101MHD6TO
