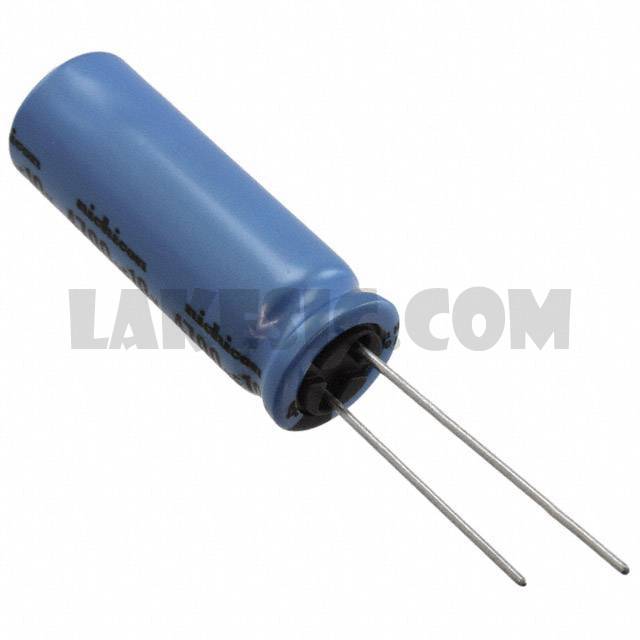

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKA Series
Standard Package	100
Manufacturer	Nichicon
Series	UKA
Packaging	Bulk
Part Status	Active
Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.3A @ 120Hz
Ripple Current @ High Frequency	1.495A @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKA1C470MDD1TD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1C331MPD1TD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA0J330MDD1TD	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1V470MDD1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA0J222MPD1TD	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA0J220MDD1TD	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1E330MDD1TD	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1A332MHD1TO	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1V471MPD1TD	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1V221MPD1TD	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1H470MED1TD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1V332MHD	Nichicon, 3300µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View

UKA1A472MHD

Part NumberUKA1A472MHD
