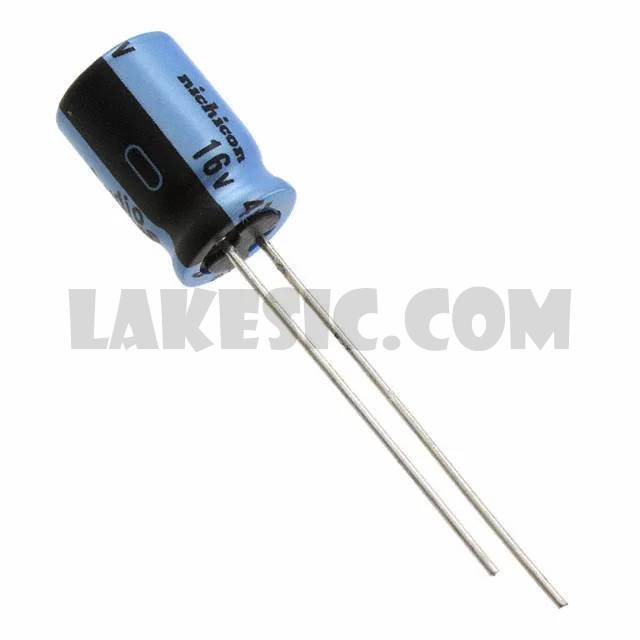

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKA Series
Standard Package	1
Manufacturer	Nichicon
Series	UKA
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	265mA @ 120Hz
Ripple Current @ High Frequency	397.5mA @ 10kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
