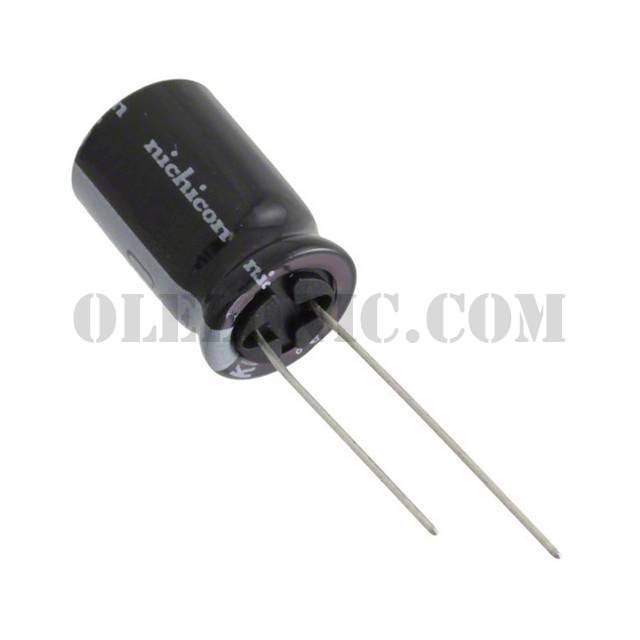

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKL Series Datasheet
Standard Package	100
Manufacturer	Nichicon
Series	UKL
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±10%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	730mA @ 120Hz
Ripple Current @ High Frequency	1.095A @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKL1E6R8MDDANATD	Nichicon, 6.8µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1C150MDDANA	Nichicon, 15µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1H1R5MDD1TA	Nichicon, 1.5µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UKL	View
UKL1H6R8KDDANA	Nichicon, 6.8µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1C470KEDANATD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1HR33MDD1TD	Nichicon, 0.33µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1E102MHD1TN	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1E470KEDANATD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1A680MED1TD	Nichicon, 68µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1V471MHD1TO	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL2A151MHD1TO	Nichicon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1E150MDD1TD	Nichicon, 15µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View

UKL1C681KHD

Part NumberUKL1C681KHD
