Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKL Series Datasheet
Standard Package	50

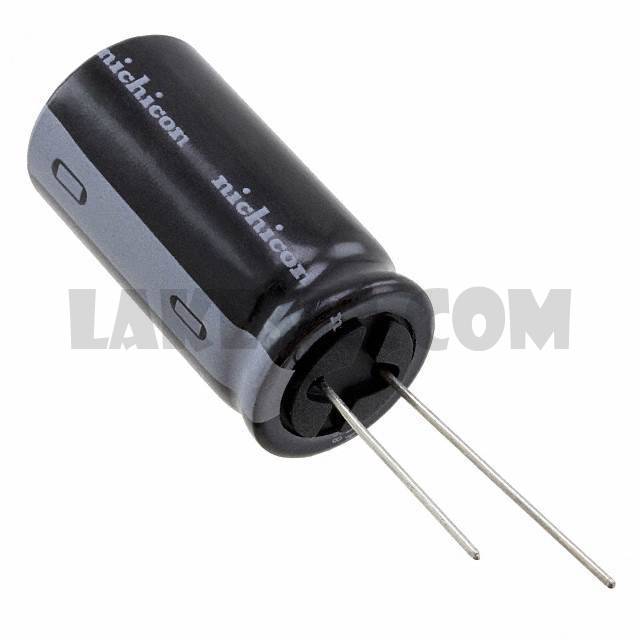

Manufacturer	Nichicon
Series	UKL
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±10%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.33A @ 120Hz
Ripple Current @ High Frequency	1.5295A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKL1V471MHD1TO	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1J331MHD1TO	Nichicon, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1V102MHD1TN	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1E470KEDANA	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1J330MPD1TD	Nichicon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1C331KPDANA	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1C220MDDANA	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1C100MDD1TA	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1V330KEDANATD	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1V330MED1TD	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1H6R8MDD1TD	Nichicon, 6.8µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL2AR47MDD1TD	Nichicon, 0.47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View

UKL1J102KHD

Part NumberUKL1J102KHD
