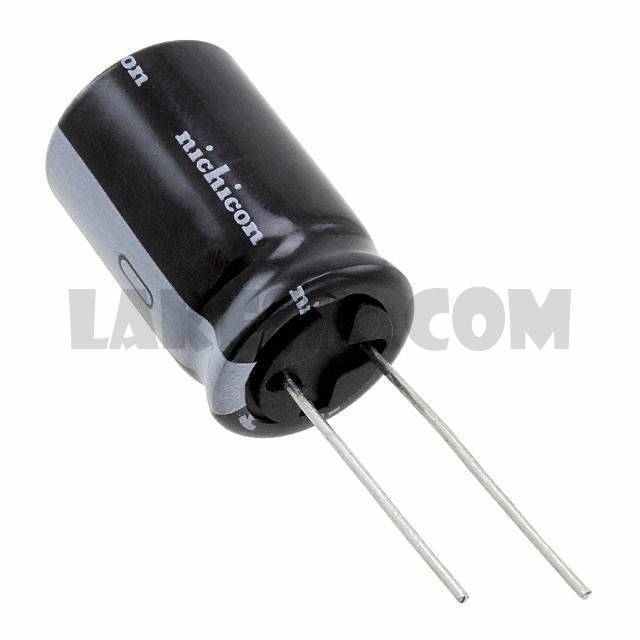

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKL Series Datasheet
Standard Package	250
Manufacturer	Nichicon
Series	UKL
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	840mA @ 120Hz
Ripple Current @ High Frequency	1.26A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
