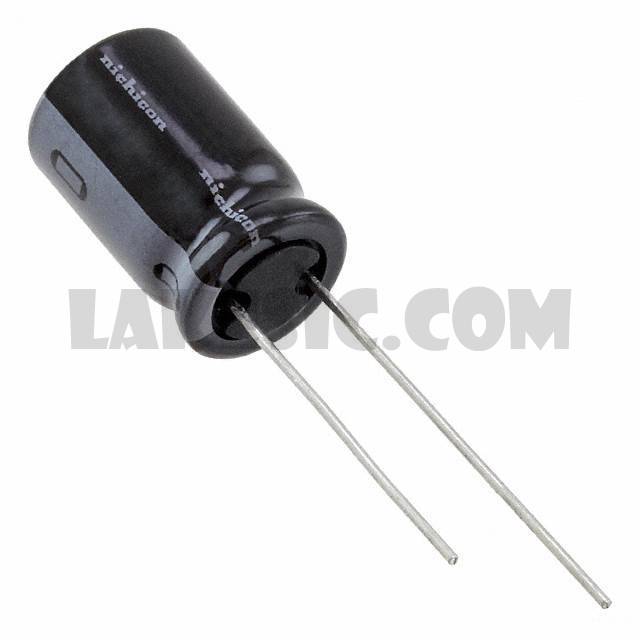

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKL Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	UKL
Packaging	Bulk
Part Status	Active
Capacitance	33µF
Tolerance	±10%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	180mA @ 120Hz
Ripple Current @ High Frequency	360mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
