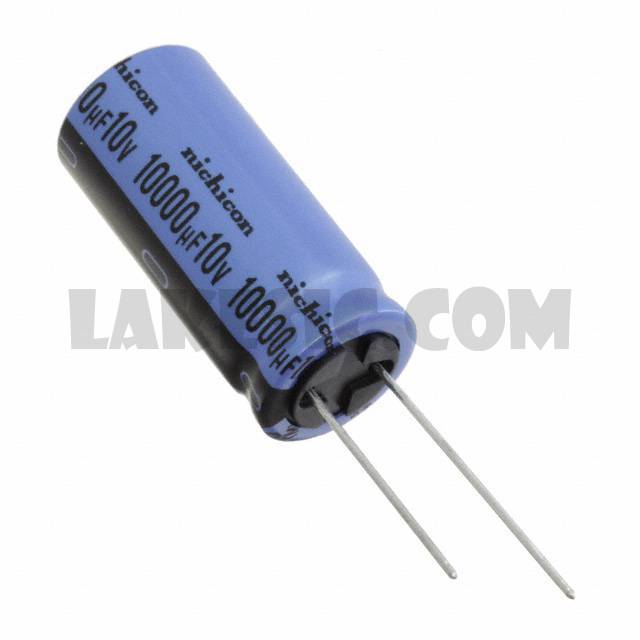

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKT Series
Standard Package	100
Manufacturer	Nichicon
Series	UKT
Packaging	Bulk
Part Status	Active
Capacitance	10000µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.89A @ 120Hz
Ripple Current @ High Frequency	2.174A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKT1E331MPD1TD	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1V332MHD	Nichicon, 3300µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1C222MHD1TO	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1H0R1MDD	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT0J331MED1TD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1A102MPD	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1C221MED1TD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT0J221MED1TD	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT0J220MDD1TD	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1A330MDD1TD	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1E221MPD1TD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT0J472MHD1TO	Nichicon, 4700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View

UKT1A103MHD

Part NumberUKT1A103MHD
