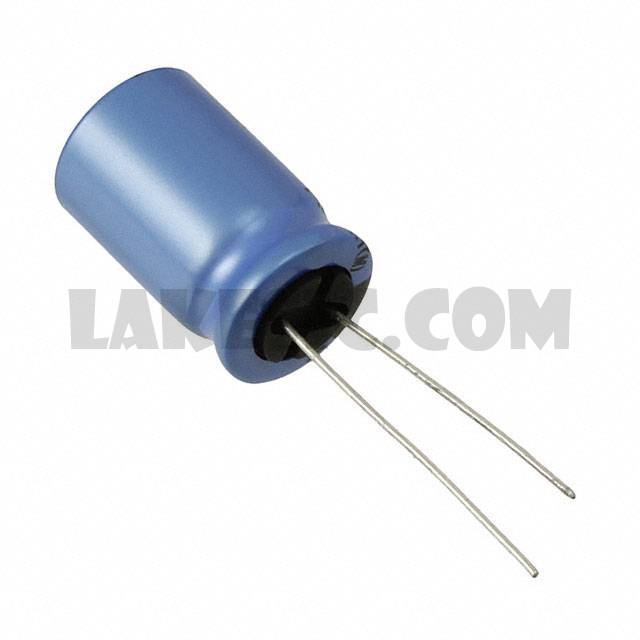

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKT Series
Standard Package	100
Manufacturer	Nichicon
Series	UKT
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	860mA @ 120Hz
Ripple Current @ High Frequency	1.29A @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKT0J331MED1TD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1A222MHD1TO	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1A470MDD1TD	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1H100MDD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT0J221MED1TD	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT0J101MDD1TD	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1HR33MDD	Nichicon, 0.33µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1H100MDD1TD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1H471MHD1TO	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1H222MHD	Nichicon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1HR47MDD1TD	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View
UKT1A331MPD	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKT	View

UKT1V102MHD

Part NumberUKT1V102MHD
