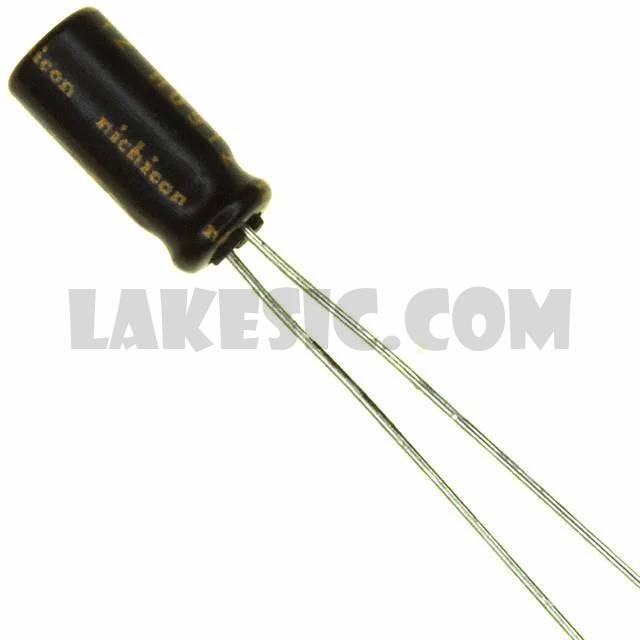

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKW Series
Standard Package	1
Manufacturer	Nichicon
Series	UKW
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	145mA @ 120Hz
Ripple Current @ High Frequency	217.5mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKW1C333MRD	Nichicon, 33000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H332MHD	Nichicon, 3300µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1C471MPD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW2A100MED1TD	Nichicon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H471MHD1TO	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H222MHD	Nichicon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1E222MHD1TO	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW2AR22MDD1TD	Nichicon, 0.22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1V102MHD1TO	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1E102MPD1TD	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1V470MDD1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View

UKW1A101MDD1TD

Part NumberUKW1A101MDD1TD
