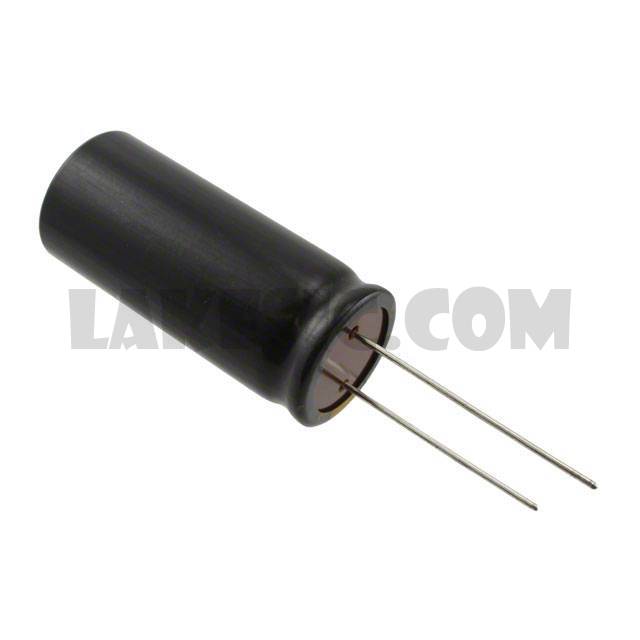

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKW Series
Standard Package	250
Manufacturer	Nichicon
Series	UKW
Packaging	Bulk
Part Status	Active
Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	3.4A @ 120Hz
Ripple Current @ High Frequency	3.91A @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.969" (50.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKW1C472MHD	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1C472MHD1TN	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1HR22MDD1TD	Nichicon, 0.22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H3R3MDD1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW0J222MPD1TD	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1C101MDD1TD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1C102MPD1TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1A682MHD	Nichicon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H470MED1TD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1E101MED	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW2A3R3MDD1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H4R7MDD1TD	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View

UKW1J472MRD

Part NumberUKW1J472MRD
