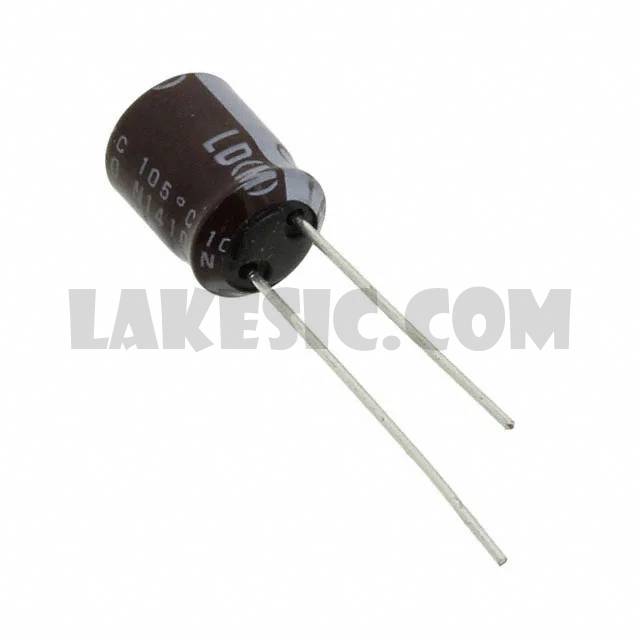

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ULD Series
Standard Package	1
Manufacturer	Nichicon
Series	ULD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	8.2µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	15000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	66mA @ 120Hz
Ripple Current @ High Frequency	125.4mA @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

ULD1V101MPD1TD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD1H330MED1TD	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2E100MPD1TD	Nichicon, 10µF 250V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD2D4R7MED1TD	Nichicon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2E180MPD1TD	Nichicon, 18µF 250V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, ULD	View
ULD2C150MPD6TD	Nichicon, 15µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2G3R9MPD	Nichicon, 3.9µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD2C150MPD1TD	Nichicon, 15µF 160V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD2E5R6MPD1TD	Nichicon, 5.6µF 250V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD2G5R6MPD1TD	Nichicon, 5.6µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD1H010MDD1TD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD1H4R7MDD1TD	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View

ULD2D8R2MPD1TD

Part NumberULD2D8R2MPD1TD
