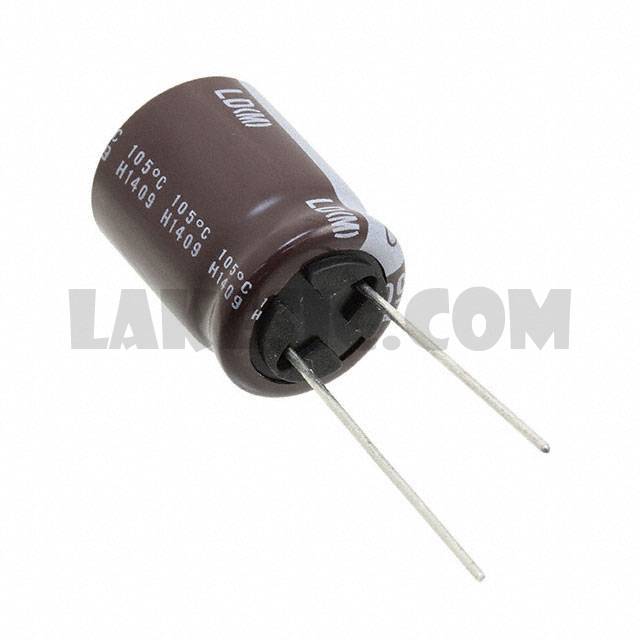

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ULD Series
Standard Package	1
Manufacturer	Nichicon
Series	ULD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	27µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	20000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	305mA @ 120Hz
Ripple Current @ High Frequency	549mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

ULD1C101MED1TD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD1A101MDD1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD1H101MPD1TD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2C150MPD6TD	Nichicon, 15µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2D3R3MED1TD	Nichicon, 3.3µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2G5R6MPD1TD	Nichicon, 5.6µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD2G3R3MPD1TD	Nichicon, 3.3µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD2W220MHD1TO	Nichicon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, ULD	View
ULD2G1R8MPD1TD	Nichicon, 1.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2G2R7MPD	Nichicon, 2.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD1H100MDD1TD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2E120MPD1TD	Nichicon, 12µF 250V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View

ULD2W270MHD1TN

Part NumberULD2W270MHD1TN
