ULN2803ADWRG4

ULN2803ADWRG4

Part NumberULN2803ADWRG4

ManufacturerTexas Instruments

DescriptionTRANS 8NPN DARL 50V 0.5A 18SO

DatasheetULN2803A Datasheet

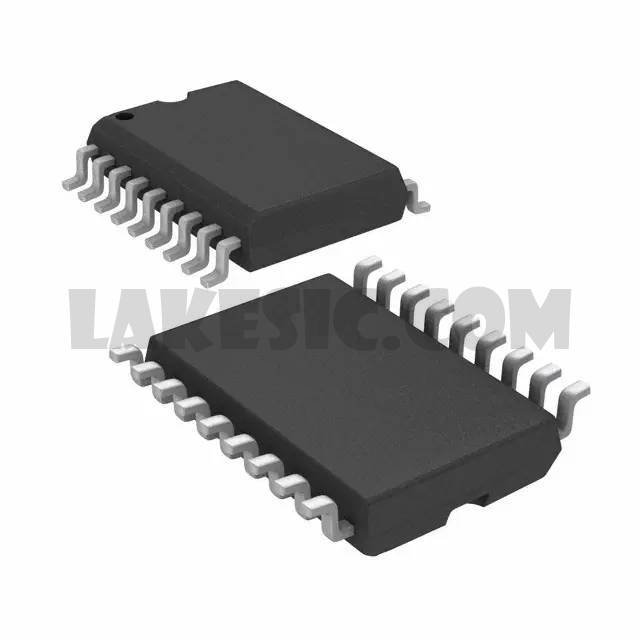

Package / Case18-SOIC (0.295", 7.50mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 8 NPN Darlington 50V 500mA Surface Mount 18-SOIC

To learn about the specification of ULN2803ADWRG4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ULN2803ADWRG4 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ULN2803ADWRG4.
We are offering ULN2803ADWRG4 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ULN2803ADWRG4 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ULN2803A Datasheet
Standard Package	2000
Manufacturer	Texas Instruments
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	8 NPN Darlington
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	-
Power - Max	-
Frequency - Transition	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	18-SOIC (0.295", 7.50mm Width)
Supplier Device Package	18-SOIC
Base Part Number	ULN2803A
