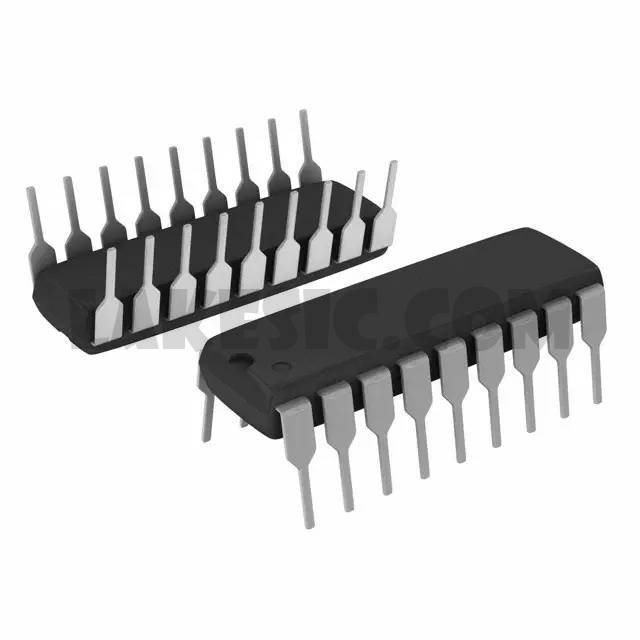

ULN2804A

ULN2804A

Part NumberULN2804A

ManufacturerSTMicroelectronics

DescriptionTRANS 8NPN DARL 50V 0.5A 18DIP

DatasheetULN280xA Datasheet

Package / Case18-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 8 NPN Darlington 50V 500mA 2.25W Through Hole 18-DIP

To learn about the specification of ULN2804A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ULN2804A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ULN2804A.
We are offering ULN2804A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ULN2804A - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ULN280xA Datasheet
Standard Package	20
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	8 NPN Darlington
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 350mA, 2V
Power - Max	2.25W
Frequency - Transition	-
Operating Temperature	-20°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	18-DIP (0.300", 7.62mm)
Supplier Device Package	18-DIP
