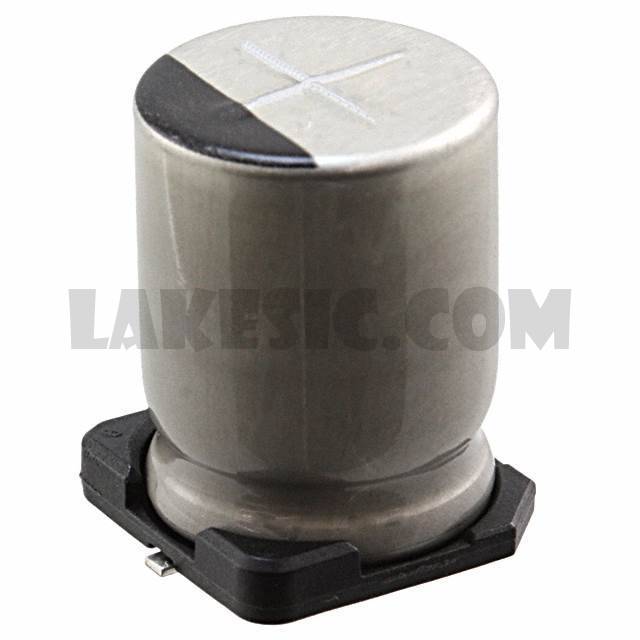

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ULR Series
Standard Package	1
Manufacturer	Nichicon
Series	ULR
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	12µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	55mA @ 120Hz
Ripple Current @ High Frequency	88mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

ULR2E150MNL1GS	Nichicon, 15µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2E150MNL1GS	Nichicon, 15µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2H3R9MNL1GS	Nichicon, 3.9µF 500V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2W6R8MNL1GS	Nichicon, 6.8µF 450V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2C390MNL1GS	Nichicon, 39µF 160V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2D120MNL1GS	Nichicon, 12µF 200V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2D330MNL1GS	Nichicon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2C270MNL1GS	Nichicon, 27µF 160V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2C270MNL1GS	Nichicon, 27µF 160V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2G4R7MNL1GS	Nichicon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2W3R9MNL1GS	Nichicon, 3.9µF 450V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View
ULR2W100MNL1GS	Nichicon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, ULR	View

ULR2G120MNL1GS

Part NumberULR2G120MNL1GS
