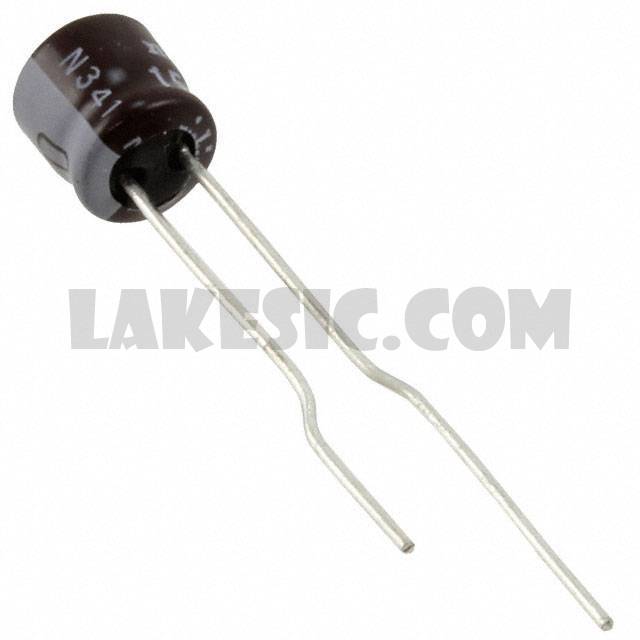

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMF Series
Standard Package	1
Manufacturer	Nichicon
Series	UMF
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	40mA @ 120Hz
Impedance	2.6 Ohms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UMF1V220MDD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF1C470MDD1TP	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF0J470MDD	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF1E330MDD1TP	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF1A470MDD1TP	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF1V100MDD1TP	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF1V1R5MDD	Nichicon, 1.5µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF0J220MDD1TP	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF1V2R2MDD	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF1C220MDD1TP	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF1C330MDD1TP	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View
UMF1A220MDD1TP	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMF	View

UMF1A330MDD1TP

Part NumberUMF1A330MDD1TP
