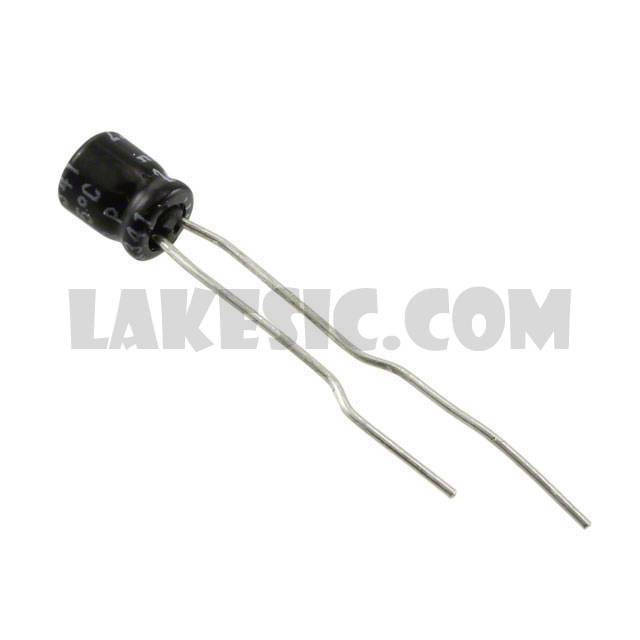

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMP Series
Standard Package	1
Manufacturer	Nichicon
Series	UMP
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	0.1µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1mA @ 120Hz
Ripple Current @ High Frequency	1.5mA @ 10kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UMP1H010MDD1TP	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1C220MDD1TP	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1A100MDD1TP	Nichicon, 10µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP0J470MDD1TP	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1E4R7MDD1TP	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1HR22MDD1TP	Nichicon, 0.22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP0J330MDD1TP	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1C220MDD1TP	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1H2R2MDD1TP	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1E3R3MDD1TP	Nichicon, 3.3µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1H3R3MDD1TP	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1C4R7MDD1TP	Nichicon, 4.7µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View

UMP1H0R1MDD1TP

Part NumberUMP1H0R1MDD1TP
