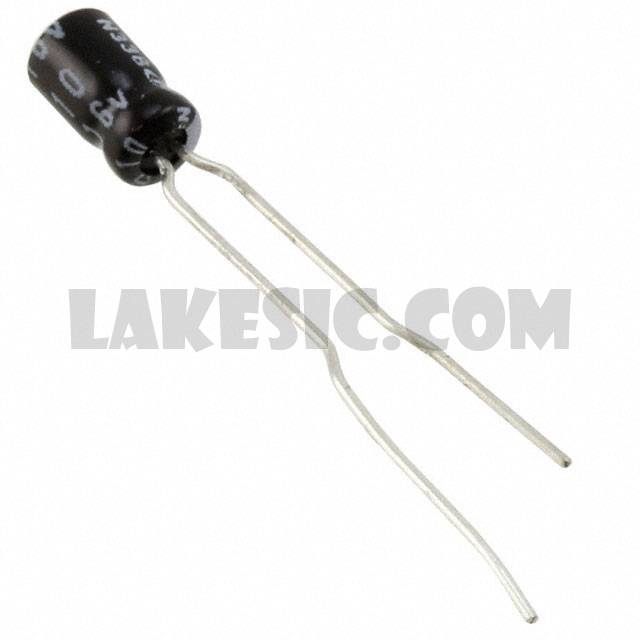

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMT Series
Standard Package	1
Manufacturer	Nichicon
Series	UMT
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
Capacitance	0.47µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	3.8mA @ 120Hz
Ripple Current @ High Frequency	5.7mA @ 10kHz
Lead Spacing	0.039" (1.00mm)
Size / Dimension	0.118" Dia (3.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
