UP3B-100-R
UP3B-100-R

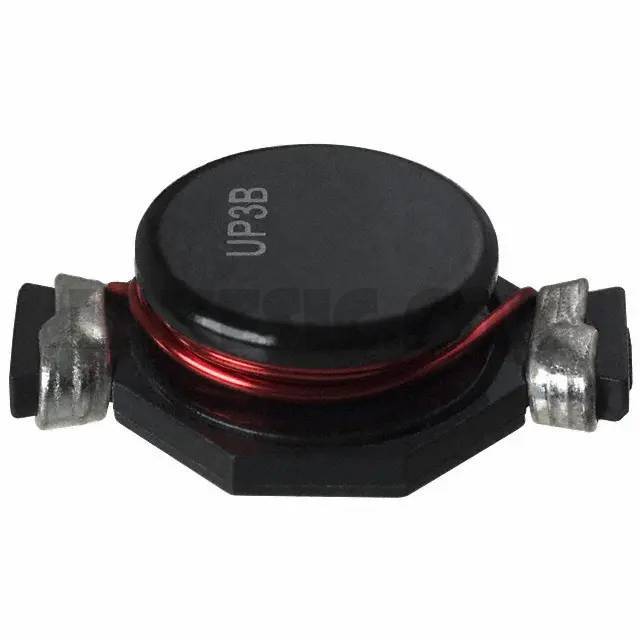

Part Number UP3B-100-R Description FIXED IND 10UH 4.3A 26 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 10µH Unshielded Wirewound Inductor 4.3A 26mOhm Max Nonstandard
To learn about the specification of UP3B-100-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UP3B-100-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UP3B-100-R.
We are offering UP3B-100-R for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
UP3B-100-R - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet UNI-PAC (-R) Standard Package 1 Manufacturer Eaton - Electronics Division Series UNI-PAC™ Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core Ferrite Inductance 10µH Tolerance ±20% Current Rating (Amps) 4.3A Current - Saturation 5.2A Shielding Unshielded DC Resistance (DCR) 26mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.760" L x 0.520" W (19.30mm x 13.21mm) Height - Seated (Max) 0.268" (6.80mm)
