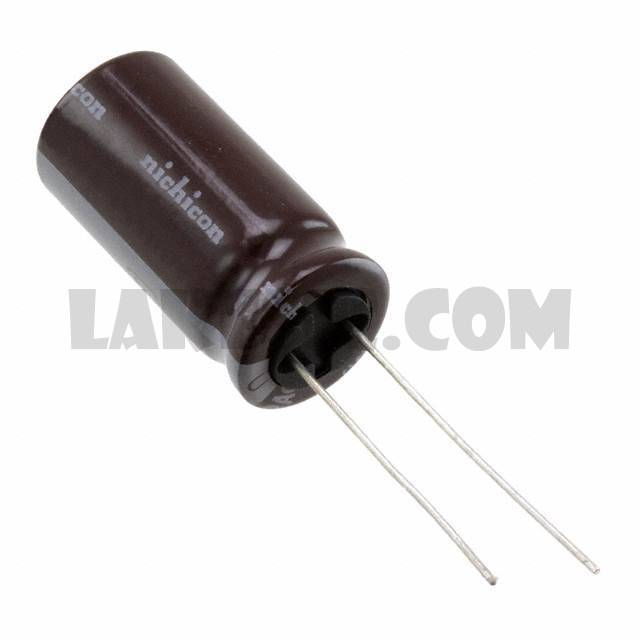

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPA Series
Standard Package	1
Manufacturer	Nichicon
Series	UPA
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1800µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.499A @ 120Hz
Ripple Current @ High Frequency	2.28A @ 100kHz
Impedance	22 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPA1E391MPD1TD	Nichicon, 390µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA1E472MHD1TN	Nichicon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1E821MPD1TD	Nichicon, 820µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1C821MPD1TD	Nichicon, 820µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA0J272MPD1TD	Nichicon, 2700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1E102MHD3TO	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1V222MHD1TN	Nichicon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1C152MPD1TD	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA0J222MPD6TD	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can, UPA	View
UPA1E471MPD6TD	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1A821MPD	Nichicon, 820µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA1A222MHD6TO	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View

UPA1E182MHD1TO

Part NumberUPA1E182MHD1TO
