Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPA Series
Standard Package	1
Manufacturer	Nichicon
Series	UPA
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.981A @ 120Hz
Ripple Current @ High Frequency	2.33A @ 100kHz
Impedance	26 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPA1C102MPD1TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1E331MPD1TD	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA1E222MHD6TN	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1C682MHD1TN	Nichicon, 6800µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1E561MPD6TD	Nichicon, 560µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1C391MPD1TD	Nichicon, 390µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA0J561MPD1TD	Nichicon, 560µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA1V561MPD1TD	Nichicon, 560µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA0J272MPD1TD	Nichicon, 2700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1A122MPD1TD	Nichicon, 1200µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA1A562MHD	Nichicon, 5600µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1A222MPD1TD	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View

UPA1E222MHD6TN

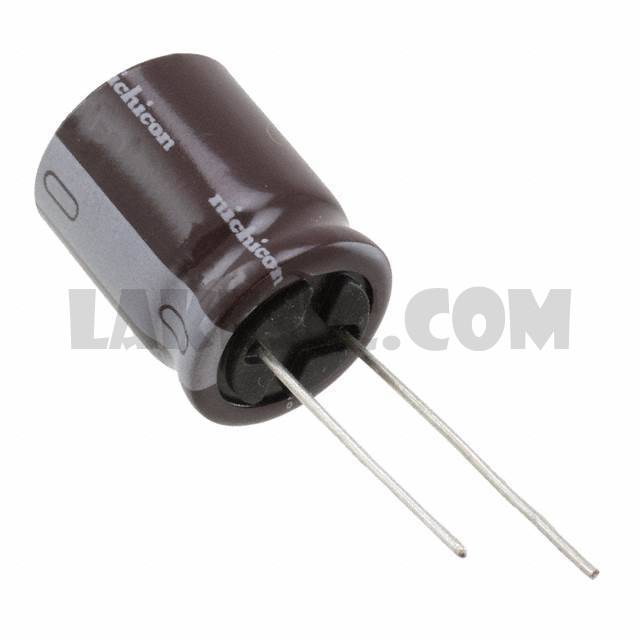

Part NumberUPA1E222MHD6TN
