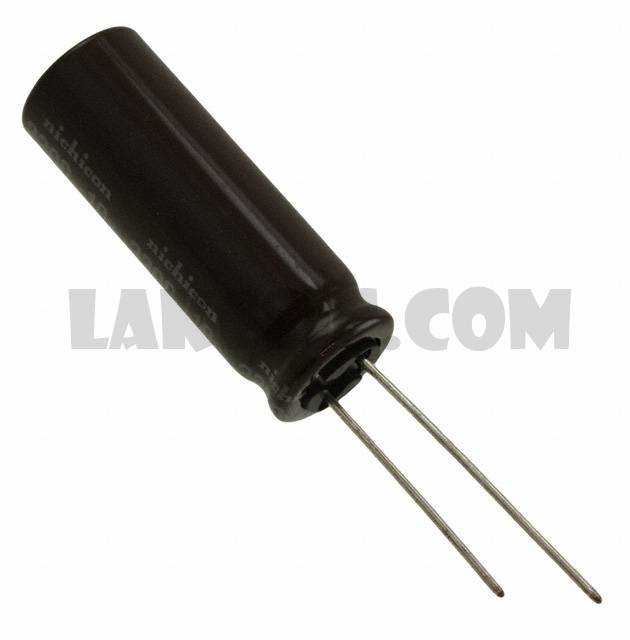

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPJ Series
Standard Package	100
Manufacturer	Nichicon
Series	UPJ
Packaging	Bulk
Part Status	Active
Capacitance	3300µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.96A @ 120Hz
Ripple Current @ High Frequency	2.18A @ 10kHz
Impedance	32 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPJ1V101MPD1TD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPJ	View
UPJ1H220MED1TD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ2AR47MDD1TD	Nichicon, 0.47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1K270MED1TD	Nichicon, 27µF 80V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1V561MHD6TN	Nichicon, 560µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1E102MHD6	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1H470MED	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1C392MHD6TN	Nichicon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2E100MHD1TO	Nichicon, 10µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1V221MPD6TD	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ0J272MHD1TO	Nichicon, 2700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1C561MHD6TO	Nichicon, 560µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View

UPJ1A332MHD

Part NumberUPJ1A332MHD
