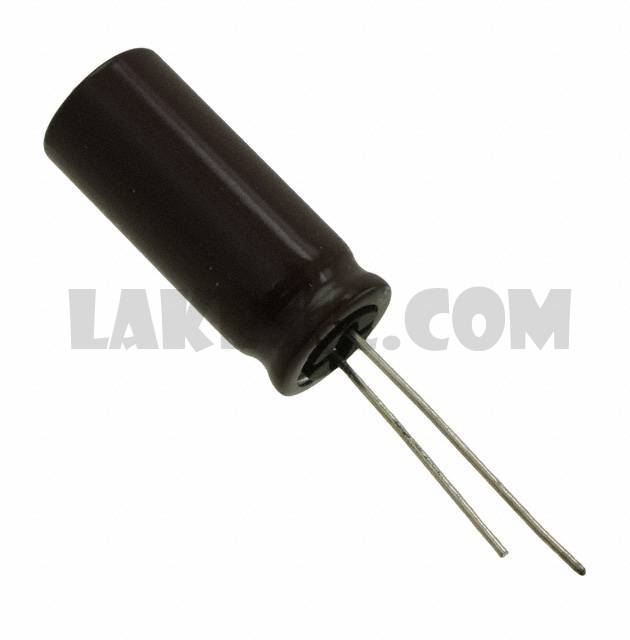

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPJ Series
Standard Package	100
Manufacturer	Nichicon
Series	UPJ
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.36A @ 120Hz
Ripple Current @ High Frequency	1.68A @ 10kHz
Impedance	40 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
