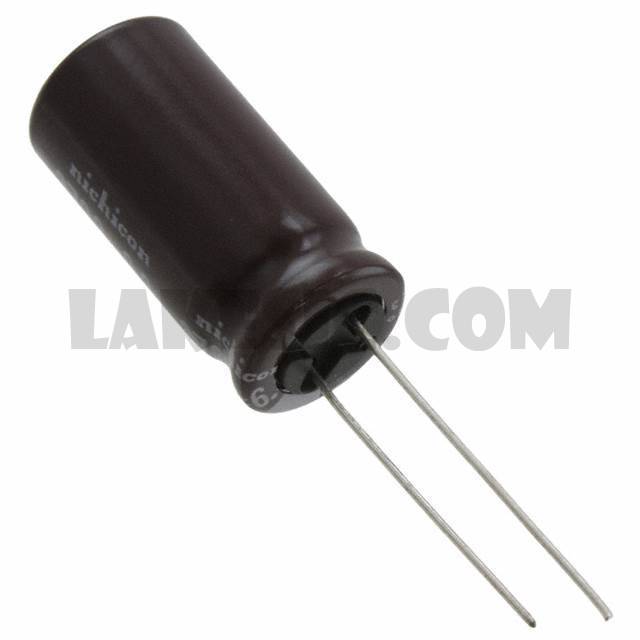

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPJ Series
Standard Package	1
Manufacturer	Nichicon
Series	UPJ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	145mA @ 120Hz
Ripple Current @ High Frequency	232mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
