Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	1000
Manufacturer	Nichicon
Series	UPM
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	660mA @ 120Hz
Ripple Current @ High Frequency	795mA @ 10kHz
Impedance	85 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPM2F2R2MPD1TD	Nichicon, 2.2µF 315V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM2W4R7MHD1TO	Nichicon, 4.7µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1A222MHD6	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM0J561MPD1TD	Nichicon, 560µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM2E330MHD1TN	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM0J391MPD1TD	Nichicon, 390µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM1C470MDD1TD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM1H2R2MDD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM2C470MHD1TN	Nichicon, 47µF 160V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1A272MHD6TN	Nichicon, 2700µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM2D2R2MPD1TD	Nichicon, 2.2µF 200V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM2E3R3MPD1TD	Nichicon, 3.3µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View

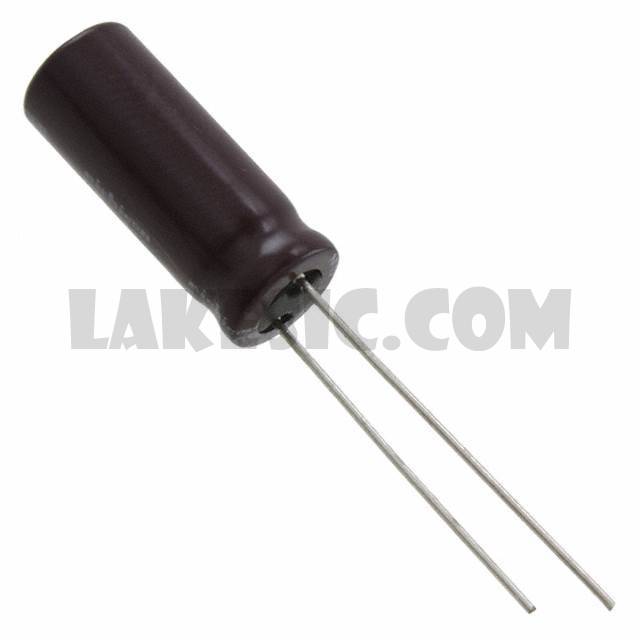

UPM1A681MPD1TD

Part NumberUPM1A681MPD1TD
