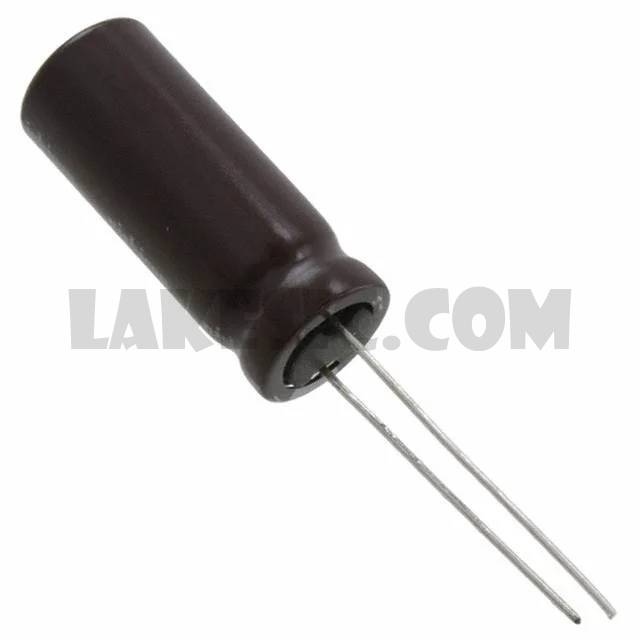

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	UPM
Packaging	Bulk
Part Status	Active
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	665mA @ 120Hz
Ripple Current @ High Frequency	950mA @ 10kHz
Impedance	90 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPM1C471MPD6	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM2G2R2MPD1TD	Nichicon, 2.2µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1V121MPD	Nichicon, 120µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM2A560MPD1TD	Nichicon, 56µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1V151MPD	Nichicon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM1C681MHD6TO	Nichicon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1J271MHD1TO	Nichicon, 270µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1C181MED1TD	Nichicon, 180µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM1V121MPD6	Nichicon, 120µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM2D330MHD1TN	Nichicon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1V151MPD1TD	Nichicon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM1E152MHD6TN	Nichicon, 1500µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View

UPM1J151MPD

Part NumberUPM1J151MPD
