Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UPM
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.61A @ 120Hz
Ripple Current @ High Frequency	1.94A @ 10kHz
Impedance	35 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPM0J222MHD6TN	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM0J471MPD6TD	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM0J681MPD1TD	Nichicon, 680µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM2G2R2MPD1TD	Nichicon, 2.2µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1K470MPD1TD	Nichicon, 47µF 80V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM1J121MPD	Nichicon, 120µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1J561MHD6TN	Nichicon, 560µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM0J821MPD1TD	Nichicon, 820µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1H680MPD1TD	Nichicon, 68µF 50V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM1A561MPD1TD	Nichicon, 560µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM0J471MPD1TD	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM0J101MDD1TD	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View

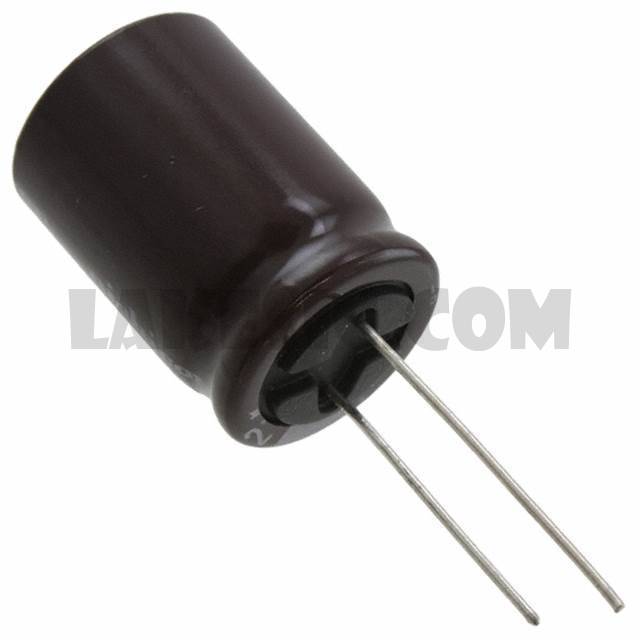

UPM1J681MHD6

Part NumberUPM1J681MHD6
