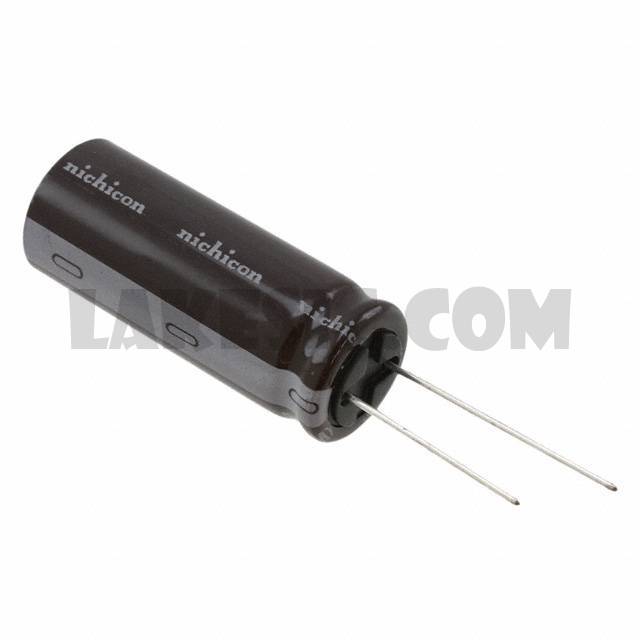

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UPM
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.83A @ 120Hz
Ripple Current @ High Frequency	2.2A @ 10kHz
Impedance	55 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
