Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	250
Manufacturer	Nichicon
Series	UPM
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.11A @ 120Hz
Ripple Current @ High Frequency	1.36A @ 10kHz
Impedance	48 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.669" (17.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPM2V2R2MPD1TD	Nichicon, 2.2µF 350V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM2A331MHD6TN	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1H220MED1TD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM0J331MED1TD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM1V680MED1TD	Nichicon, 68µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM0J561MPD6TD	Nichicon, 560µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1J270MED1TD	Nichicon, 27µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM2W2R2MPD1TD	Nichicon, 2.2µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1V270MDD1TD	Nichicon, 27µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM0J272MHD1TO	Nichicon, 2700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1A122MPD	Nichicon, 1200µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM2C3R3MPD1TD	Nichicon, 3.3µF 160V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View

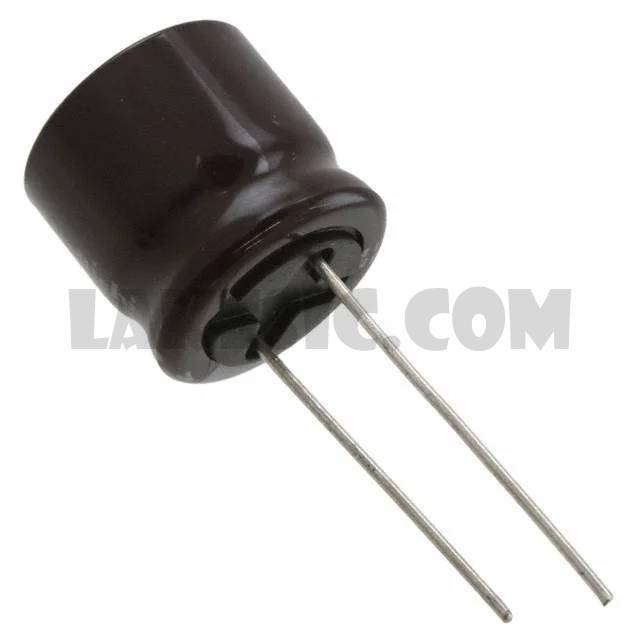

UPM1V561MHD6TN

Part NumberUPM1V561MHD6TN
