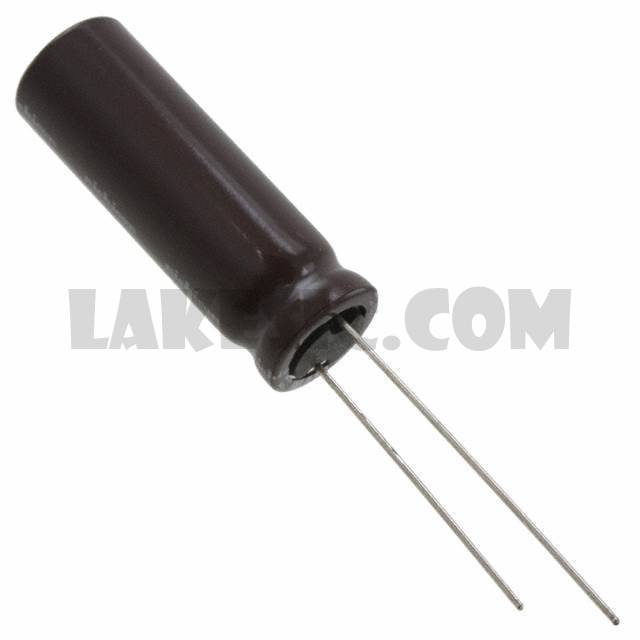

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	UPM
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	635mA @ 120Hz
Ripple Current @ High Frequency	955mA @ 10kHz
Impedance	150 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPM2A121MHD1TO	Nichicon, 120µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM0J222MHD6TN	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1K820MHD6TO	Nichicon, 82µF 80V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM2E2R2MPD1TD	Nichicon, 2.2µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1C222MHD	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1A181MED1TD	Nichicon, 180µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM1J820MPD6TD	Nichicon, 82µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM0J222MHD6	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1J331MHD6TN	Nichicon, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1C102MHD6TN	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1H151MPD	Nichicon, 150µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View

UPM2A101MPD

Part NumberUPM2A101MPD
