Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UPM
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.57A @ 120Hz
Ripple Current @ High Frequency	1.97A @ 10kHz
Impedance	56 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPM1J270MED1TD	Nichicon, 27µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM2A220MPD1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM1J151MPD1TD	Nichicon, 150µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1E181MPD1TD	Nichicon, 180µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM1V471MHD6TN	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1V102MHD	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1E560MED1TD	Nichicon, 56µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM2E4R7MPD1TD	Nichicon, 4.7µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM0J821MPD6TD	Nichicon, 820µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1H181MPD	Nichicon, 180µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1K470MPD1TD	Nichicon, 47µF 80V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM1J271MHD	Nichicon, 270µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View

UPM2A471MHD6

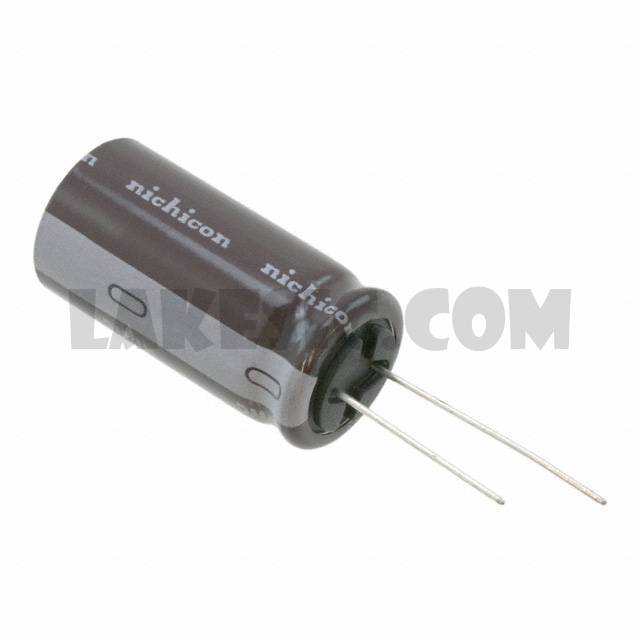

Part NumberUPM2A471MHD6
