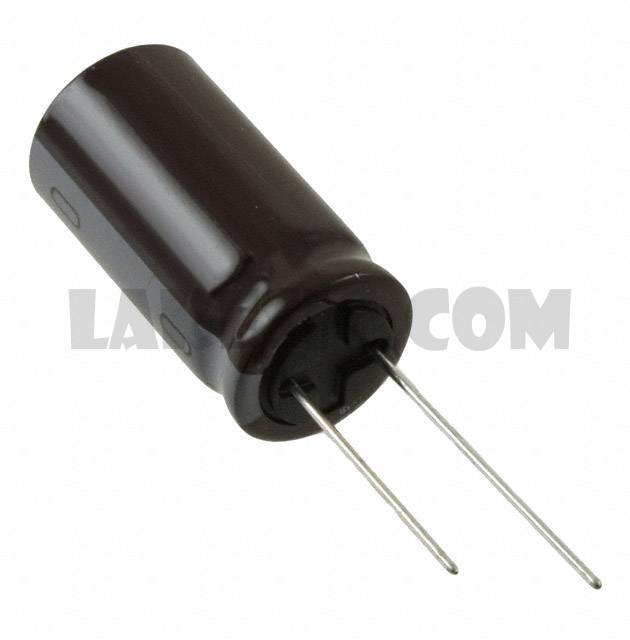

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPS Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UPS
Packaging	Bulk
Part Status	Active
Capacitance	3300µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.045A @ 120Hz
Ripple Current @ High Frequency	2.35A @ 100kHz
Impedance	33 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
