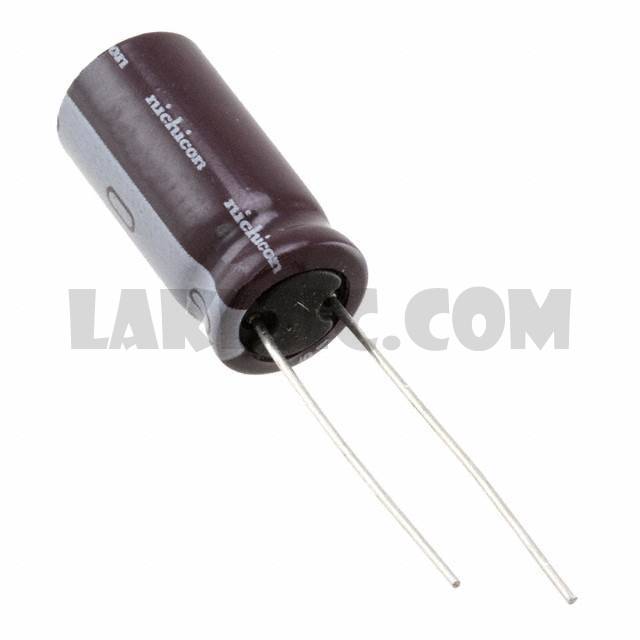

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPS Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	UPS
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	575.1mA @ 120Hz
Ripple Current @ High Frequency	810mA @ 100kHz
Impedance	150 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPS2E331MRD	Nichicon, 330µF 250V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS2CR47MED1TD	Nichicon, 0.47µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1E330MDD1TD	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS0J471MPD1TD	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2V010MPD1TD	Nichicon, 1µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2V4R7MPD1TD	Nichicon, 4.7µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1H221MPD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2C220MPD1TD	Nichicon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1A222MHD1TO	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS1J4R7MDD1TA	Nichicon, 4.7µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1V101MPD1TD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS0J102MPD1TD	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View

UPS1H331MPD

Part NumberUPS1H331MPD
