Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPT Series
Standard Package	100
Manufacturer	Nichicon
Series	UPT
Packaging	Bulk
Part Status	Active
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	530mA @ 120Hz
Ripple Current @ High Frequency	848mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.240" (31.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPT2D820MHD1TO	Nichicon, 82µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPTW6180MPD	Nichicon, 18µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E471MRD6	Nichicon, 470µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P560MPD	Nichicon, 56µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G331MRD	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G271MRD	Nichicon, 270µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G181MRD	Nichicon, 180µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPTW6820MHD	Nichicon, 82µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G330MHD	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P681MRD	Nichicon, 680µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E221MHD6	Nichicon, 220µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G270MHD1TO	Nichicon, 27µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View

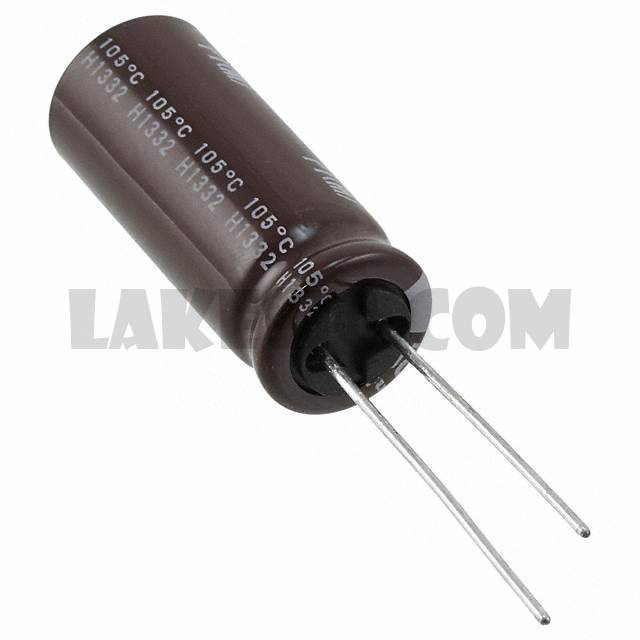

UPT2D121MHD

Part NumberUPT2D121MHD
