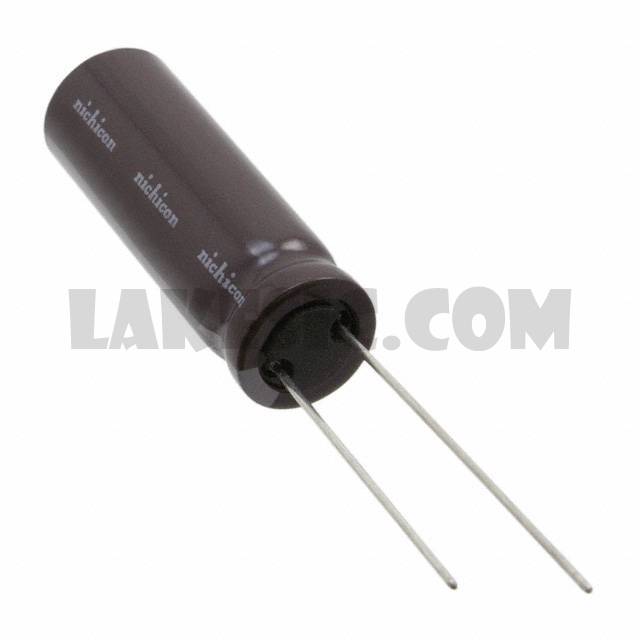

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPT Series
Standard Package	200
Manufacturer	Nichicon
Series	UPT
Packaging	Bulk
Part Status	Active
Capacitance	68µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	350mA @ 120Hz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPTW6330MHD	Nichicon, 33µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2W330MHD	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D331MHD	Nichicon, 330µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P101MHD	Nichicon, 100µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E221MHD	Nichicon, 220µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E820MHD	Nichicon, 82µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D221MHD6	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2W101MHD	Nichicon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPTW6220MHD1TO	Nichicon, 22µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G270MHD1TO	Nichicon, 27µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2W181MRD	Nichicon, 180µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E221MHD6	Nichicon, 220µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View

UPT2D680MPD

Part NumberUPT2D680MPD
