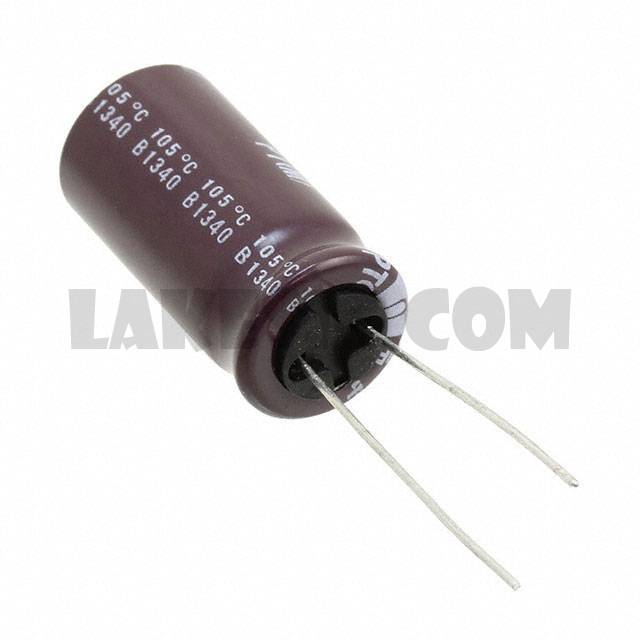

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPT Series
Standard Package	1
Manufacturer	Nichicon
Series	UPT
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	310mA @ 120Hz
Ripple Current @ High Frequency	496mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPTW6180MPD	Nichicon, 18µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P121MHD	Nichicon, 120µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2W151MRD6	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P271MHD6	Nichicon, 270µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E181MHD	Nichicon, 180µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2W390MHD	Nichicon, 39µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E121MHD	Nichicon, 120µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D181MHD	Nichicon, 180µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D681MRD6	Nichicon, 680µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P221MHD6	Nichicon, 220µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P561MRD	Nichicon, 560µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P560MPD	Nichicon, 56µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View

UPT2E560MHD1TO

Part NumberUPT2E560MHD1TO
