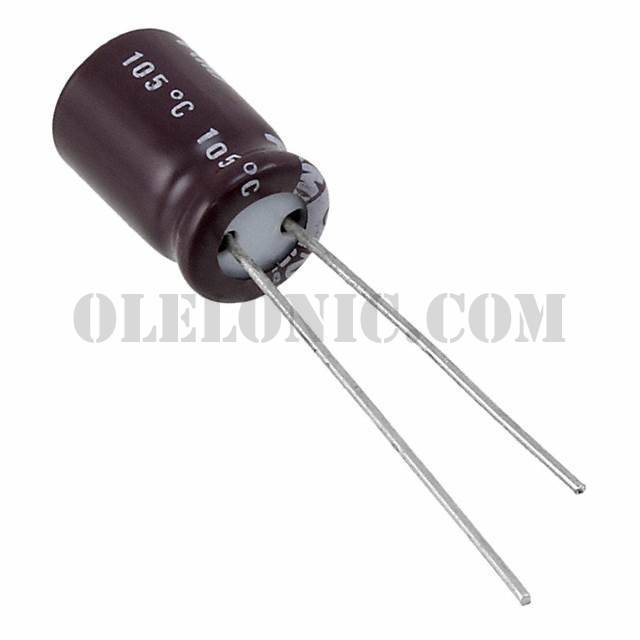

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPV Series
Standard Package	1000
Manufacturer	Nichicon
Series	UPV
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Impedance	270 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPV1H120MFD1TD	Nichicon, 12µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1V470MGD1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1E101MGD1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1A181MGD1TD	Nichicon, 180µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1H270MGD1TD	Nichicon, 27µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1E330MFD1TD	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1H390MGD1TD	Nichicon, 39µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1C470MFD1TD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1C560MFD1TD	Nichicon, 56µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV0J391MGD1TD	Nichicon, 390µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1H680MGD1TD	Nichicon, 68µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV0J121MFD1TD	Nichicon, 120µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View

UPV1E151MGD1TD

Part NumberUPV1E151MGD1TD
