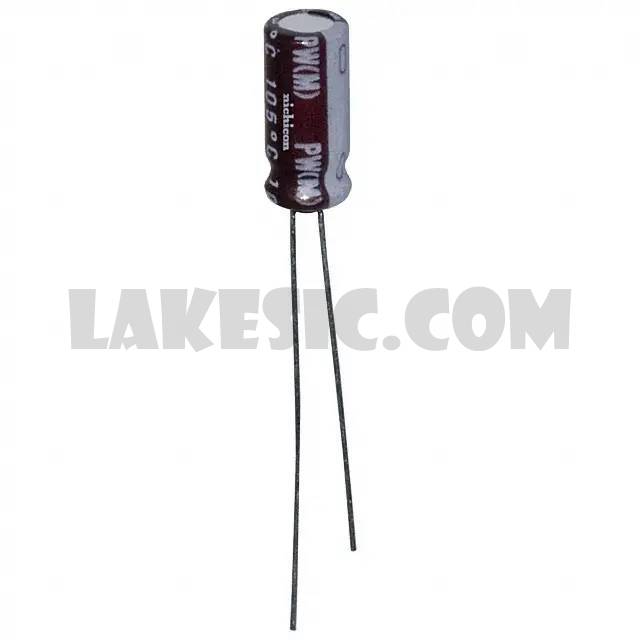

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPW Series
Standard Package	200
Manufacturer	Nichicon
Series	UPW
Packaging	Bulk
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	54mA @ 120Hz
Ripple Current @ High Frequency	180mA @ 100kHz
Impedance	600 mOhms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPW1C472MHD6TN	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1H100MDD6TP	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW2A100MED1TD	Nichicon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1J180MDD1TD	Nichicon, 18µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1C122MPD1TD	Nichicon, 1200µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW2E221MRD	Nichicon, 220µF 250V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW2G010MPD1TD	Nichicon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW2A470MPD6TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW1E221MPD1TA	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW2C3R3MPD1TD	Nichicon, 3.3µF 160V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW1V222MHD6TN	Nichicon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1E270MDD1TP	Nichicon, 27µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View

UPW1E100MDD

Part NumberUPW1E100MDD
