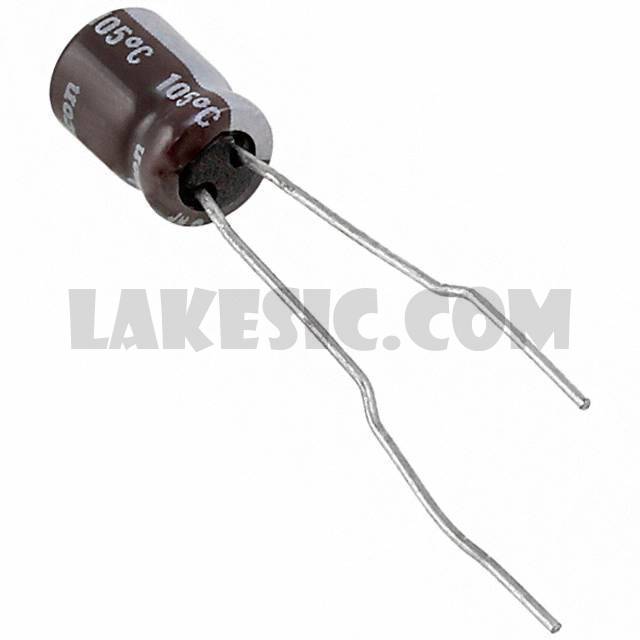

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPW Series
Standard Package	2000
Manufacturer	Nichicon
Series	UPW
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	36mA @ 120Hz
Impedance	950 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
