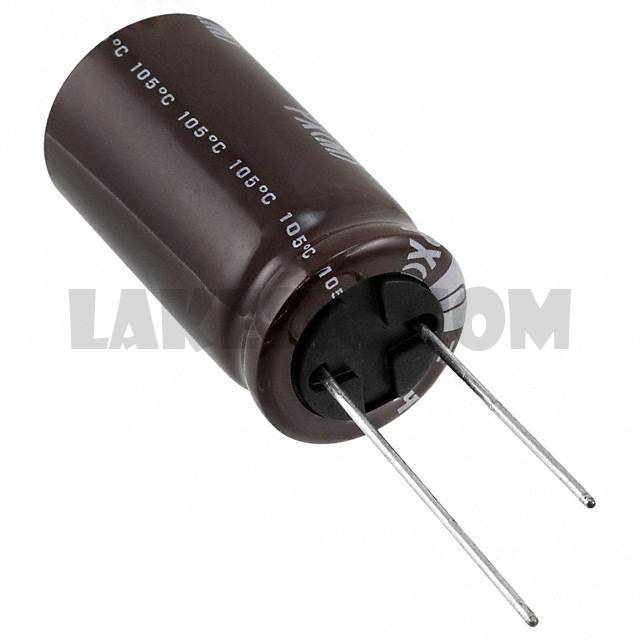

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPX Series
Standard Package	50
Manufacturer	Nichicon
Series	UPX
Packaging	Bulk
Part Status	Not For New Designs
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	20000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.26A @ 120Hz
Ripple Current @ High Frequency	1.68A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
