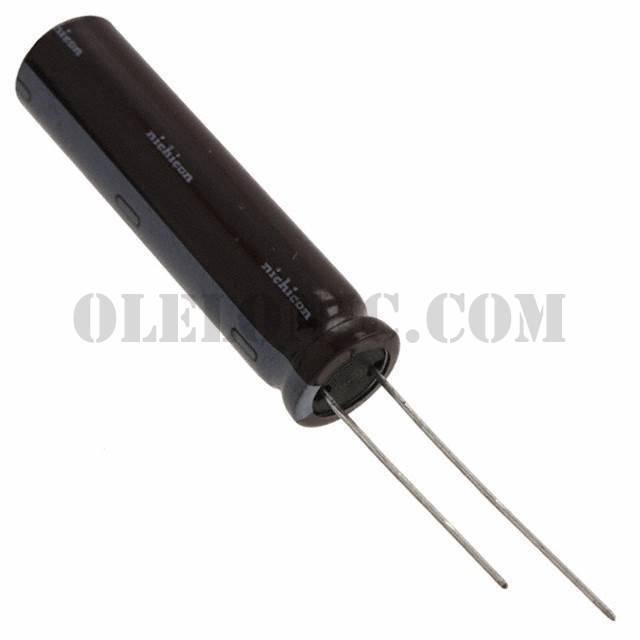

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPZ Series
Standard Package	200
Manufacturer	Nichicon
Series	UPZ
Packaging	Bulk
Part Status	Active
Capacitance	27µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	240mA @ 120Hz
Ripple Current @ High Frequency	360mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPZ2E560MND9	Nichicon, 56µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D271MNY9	Nichicon, 270µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D151MHD	Nichicon, 150µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6151MHD	Nichicon, 150µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2W820MHD6	Nichicon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6121MHD	Nichicon, 120µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2E121MND9	Nichicon, 120µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D181MHD	Nichicon, 180µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2G121MHD6	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2G680MHD	Nichicon, 68µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6680MHD	Nichicon, 68µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6560MHD	Nichicon, 56µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View

UPZ2G270MPD

Part NumberUPZ2G270MPD
