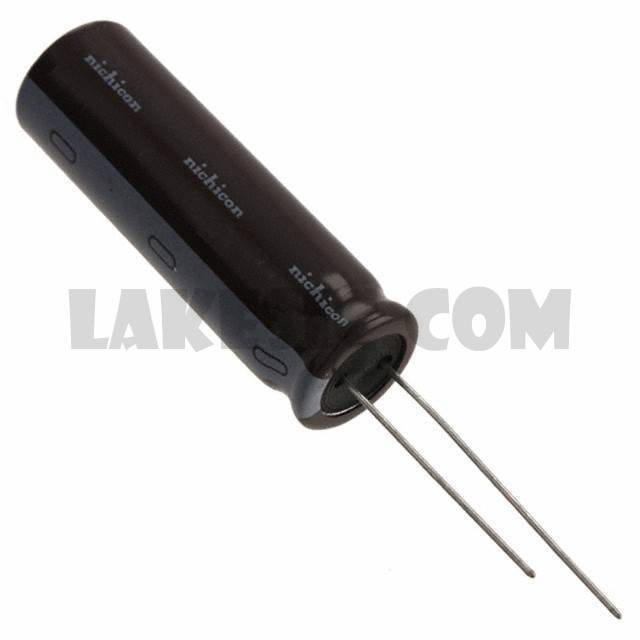

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPZ Series
Standard Package	100
Manufacturer	Nichicon
Series	UPZ
Packaging	Bulk
Part Status	Active
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	570mA @ 120Hz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPZ2W560MHD	Nichicon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D391MHD6	Nichicon, 390µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2W121MHD	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2E221MNY9	Nichicon, 220µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2G151MHD	Nichicon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D331MHD6	Nichicon, 330µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6151MHD	Nichicon, 150µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D271MHD	Nichicon, 270µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6101MHD	Nichicon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2E151MNY9	Nichicon, 150µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2W470MHD	Nichicon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D331MHD	Nichicon, 330µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View

UPZ2W560MNY9

Part NumberUPZ2W560MNY9
