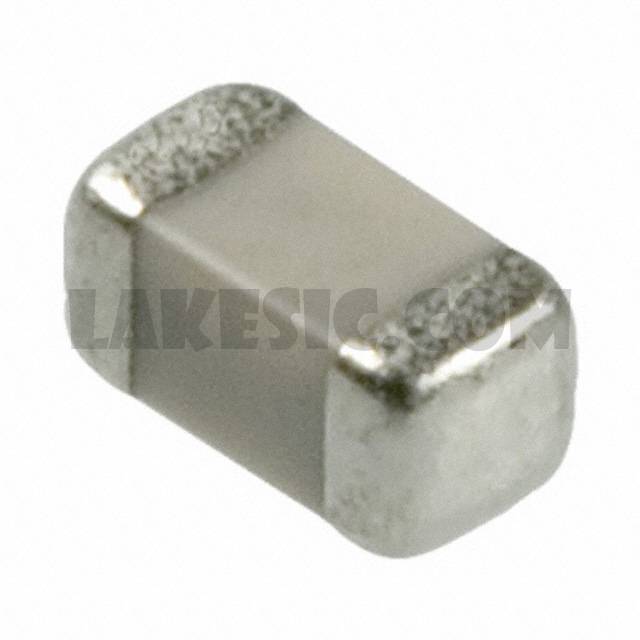

Categories	Capacitors / Ceramic Capacitors
Datasheet	UQCA,CB,CR Series
Standard Package	500
Manufacturer	AVX Corporation
Series	UQ
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	3.9pF
Tolerance	±0.25pF
Voltage - Rated	250V
Temperature Coefficient	A
Operating Temperature	-55°C ~ 125°C
Features	High Q, Low Loss
Ratings	-
Applications	RF, Microwave, High Frequency
Mounting Type	Surface Mount, MLCC
Package / Case	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.032" W (1.60mm x 0.81mm)
Height - Seated (Max)	-
Thickness (Max)	0.035" (0.89mm)
Lead Spacing	-
Lead Style	-

UQCFVA0R7BAT2A\500	AVX Corporation, 0.7pF ±0.1pF 250V Ceramic Capacitor A 0805 (2012 Metric), UQ	View
UQCSVA1R1BAT2A\500	AVX Corporation, 1.1pF ±0.1pF 250V Ceramic Capacitor A 0603 (1608 Metric), UQ	View
UQCB7A101JATME\1K	AVX Corporation, 100pF ±5% 500V Ceramic Capacitor A 1111 (2828 Metric), UQ	View
UQCL2A3R0BAT2A\500	AVX Corporation, 3pF ±0.1pF 200V Ceramic Capacitor A 0402 (1005 Metric), UQ	View
UQCL2A0R7BAT2A	AVX Corporation, 0.7pF ±0.1pF 200V Ceramic Capacitor A 0402 (1005 Metric), UQ	View
UQCL2A270JAT2A\500	AVX Corporation, 27pF ±5% 200V Ceramic Capacitor A 0402 (1005 Metric), UQ	View
UQCFVA3R9CAT2A\500	AVX Corporation, 3.9pF ±0.25pF 250V Ceramic Capacitor A 0805 (2012 Metric), UQ	View
UQCAVA101JATME	AVX Corporation, 100pF ±5% 250V Ceramic Capacitor A 0505 (1313 Metric), UQ	View
UQCFVA330JAT2A\500	AVX Corporation, 33pF ±5% 250V Ceramic Capacitor A 0805 (2012 Metric), UQ	View
UQCSVA1R1BAT2A\500	AVX Corporation, 1.1pF ±0.1pF 250V Ceramic Capacitor A 0603 (1608 Metric), UQ	View
UQCSVA1R8BAT2A\500	AVX Corporation, 1.8pF ±0.1pF 250V Ceramic Capacitor A 0603 (1608 Metric), UQ	View
UQCFVA241JAT2A\500	AVX Corporation, 240pF ±5% 250V Ceramic Capacitor A 0805 (2012 Metric), UQ	View

UQCSVA3R9CAT2A/500

Part NumberUQCSVA3R9CAT2A\500
