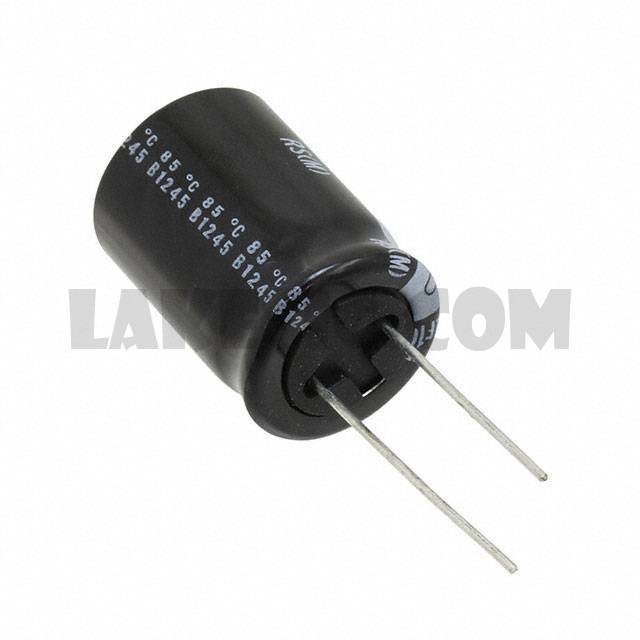

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	URS Series
Standard Package	1
Manufacturer	Nichicon
Series	URS
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10000µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.35A @ 120Hz
Ripple Current @ High Frequency	2.7025A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

URS2A2R2MDD1TD	Nichicon, 2.2µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1C220MDD1TD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1E332MHD	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1HR33MDD1TD	Nichicon, 0.33µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1J470MPD1TD	Nichicon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1A682MHD1TN	Nichicon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2C101MHD1TN	Nichicon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS0J103MHD1TN	Nichicon, 10000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1A332MHD1TN	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2A0R1MDD1TD	Nichicon, 0.1µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1A472MHD1TN	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View

URS1A103MHD1TN

Part NumberURS1A103MHD1TN
