Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	URS Series
Standard Package	50
Manufacturer	Nichicon
Series	URS
Packaging	Bulk
Part Status	Active
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	710mA @ 120Hz
Ripple Current @ High Frequency	1.136A @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.787" Dia (20.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

URS0J332MHD1TN	Nichicon, 3300µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1A472MHD1TN	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS0J470MDD1TD	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2C680MHD1TN	Nichicon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1A103MHD1TN	Nichicon, 10000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1E471MPD1TD	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1H2R2MDD1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1E101MDD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2A4R7MDD1TD	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2D470MHD1TN	Nichicon, 47µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2A221MHD1TN	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1H221MPD1TD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View

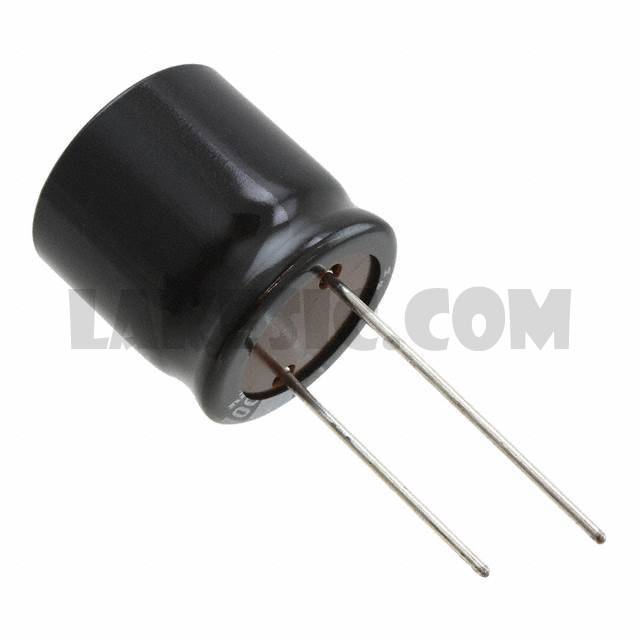

URS2C151MRD6

Part NumberURS2C151MRD6
